Venting Gas Break Down Voltage Tester

Conventional methods for determing clearance and creepage distances in a battery are not sufficient. IEC 60664 is not adequate in a fault.

With the newly developed cell test rig, minimum clearances can be determinded as a function of the cell chemistry and the maximum voltage, so that there is no breakdown in case of venting.

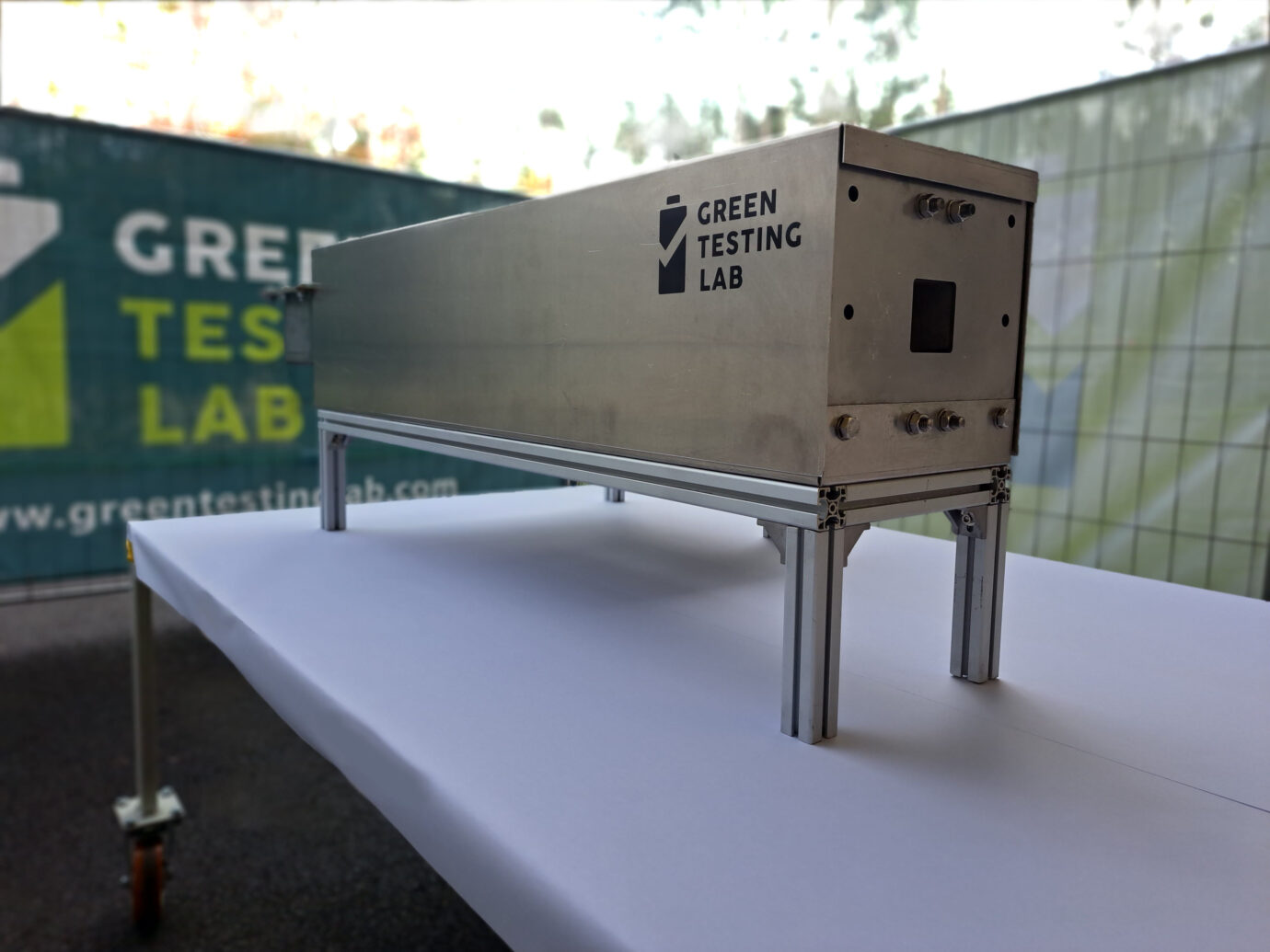

Das Kanonenrohr draußen am Testgelände auf einem Tisch stehend

Venting Gas Break Down Voltage Tester

This method is a test for research and development to identify the minimum gap to prevent the venting path/gas from arcing.

The ignition behavior of the venting gas can be investigated by triggering cells via heat plate.

  • Ambient Temperature: 0°C – 60°C
  • Voltage: 0 – 1000 V
  • Break Down Distance: 0 – 50 mm

Pfeil nach rechts in hellgrün For special requests, we are able to create the right concept for you!
